Dell EMC e20-260 practice test
VPLEX Specialist for Implementation Engineers Exam
Last exam update: Dec 19 ,2024
Question 1
Refer to the exhibit.
You are planning to perform data mobility between VPLEX Clusters using the GUI. What mobility job
options do you have?
- A. create, stop, activate, monitor, pause, throttle and terminate
- B. create, activate, fracture, resync, monitor, pause, and commit
- C. create, cancel, suspend, monitor, pause, throttle, and terminate
- D. create, remove, cancel, monitor, pause, throttle, and commit
Answer:
D
Question 2
Refer to the exhibit.

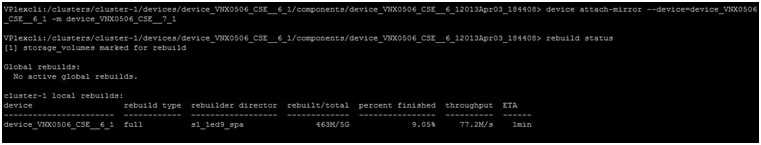

After the "attach-mirror" command is successfully executed on device "device_VNX0506_CSE__6_1",
the command "rebuild-status" shows an ongoing rebuild process on the same device.
What is a possible cause?
- A. It is a normal behavior. when attaching a mirror, a rebuild process starts.
- B. The device "device_VNX0506_CSE__6_1" has an ongoing rebuild process for a previous failure.
- C. The rebuild process is related to a director failure.
- D. The device mirror will start only after the rebuild process is completed.
Answer:
A
Question 3
Refer to the exhibit.
What is the result of the command?
- A. clustermirror becomes a top-level device but without any virtual volume created or guarantees about its data.
- B. clustermirror becomes a top-level device, and a virtual volume is created for the device if the parent had a virtual volume.
- C. clustermirror is broken down to its base extents.
- D. clustermirror is detached and discarded.
Answer:
B
Question 4
Refer to the exhibit.
A customer is moving some VMAX devices under a VPLEX Local and is using PowerPath as multipath
software. What is the preferred PowerPath load balancing policy assigned to VPLEX volumes?
- A. Fixed
- B. Adaptive
- C. Round Robin
- D. SymOpt
Answer:
B
Question 5
Refer to the exhibit.
Which command must be used to generate this output?
- A. vpn status
- B. ndu pre-check
- C. health-check
- D. ifconfig -a eth3
Answer:
A
Question 6
Refer to the exhibit.
NDU pre-check failed because minimal topology is in use. Which parameter can be added to the ndu
start command that will allow the NDU to proceed without error in this situation?
- A. Only the --force option
- B. Only the --skip-view-config-check option
- C. Both the --skip-sysconfig-check and --skip-view-config-check options
- D. Both the --skip-sysconfig-check and --force options
Answer:
C
Question 7
Refer to the exhibit.
You are preparing to upgrade a VPLEX Metro system. You ran the version command to begin the
verification process and received the output shown.
What is the most likely reason for the warning?
- A. The Metadata volume is in an NDU state.
- B. The Cluster Witness is at the wrong version.
- C. The Management Server is at the wrong version.
- D. The directors are in an NDU state.
Answer:
B
Question 8
Refer to the exhibit.
What is the purpose of VPLEX Witness in a Metro environment?
- A. Prevent cluster link failure and stop I/O transfer. Split consistency groups and failover consistency groups.
- B. Send notifications and pause I/O transfer. Initiate vault dump and failover consistency groups.
- C. Observe state of the clusters and suspend I/O. Execute health check and resume I/O.
- D. Observe the state of the clusters and distinguish link outages. Intercluster failures and resume or suspend I/O.
Answer:
D
Question 9
Refer to the exhibit.
A customer has not followed EMC best practices when cabling their VS2 VPLEX engine. You are asked
how to re-cable the engine to adhere to best practices. What is your response?
- A. Swap port 00 with port 01 of module A1-BE and B1-BE.
- B. Swap port 02 with port 03 of module A0-FE and B0-FE.
- C. Swap port 00 with port 01 of module A0-FE and B0-FE.
- D. Swap port 02 with port 03 of module A1-BE and B1-BE.
Answer:
C
Question 10
Refer to the exhibit.
The customer has not followed EMC best practices when cabling their VS2 VPLEX engine. You are
asked how to re-cable the engine to adhere to best practices. What is your response?
- A. Swap port 00 with port 01 of both director A and director B.
- B. Swap port 02 with port 03 of both director A and director B.
- C. Swap port 00 with port 01 of director B.
- D. Swap port 00 with port 01 of director A.
Answer:
A
Question 11
Refer to the exhibit.
Which two metavolume candidates should be used to complete the displayed command?
- A. 1 and 2
- B. 5 and 6
- C. 1 and 3
- D. 3 and 4
Answer:
C
Question 12
Refer to the exhibit.
Which tab of the VPLEX Unisphere Management Console GUI contains a link to VPLEX product
documentation?
- A. Support
- B. Provision Storage
- C. Mobility Central
- D. System Status
Answer:
A
Question 13
Refer to the exhibit.

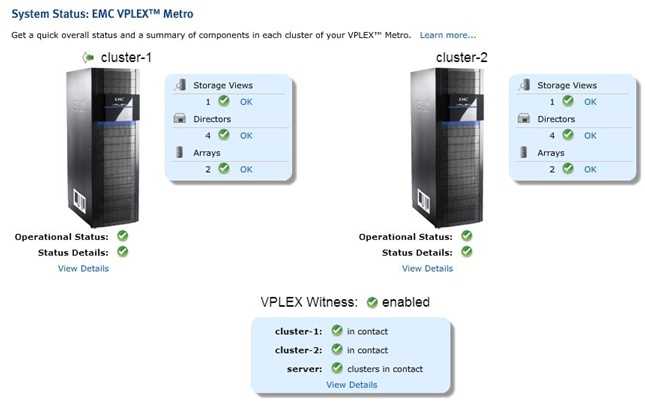

You have opened the VPLEX Unisphere Manager to validate the health of the system.
What is the most likely reason for the Operational Status indicator?
- A. The VPLEX Witness has detected a WAN link failure.
- B. A component is in a degraded state in the cluster.
- C. Cluster-1 has lost management IP connection to cluster-2
- D. The cluster-1 management server has failed.
Answer:
B
Question 14
Refer to the exhibit.
A customer is requesting a performance analysis for their distributed volumes in a Metro
configuration to ensure there are no issues with a recent implementation.
What additional files should be collected?
- A. Perpetual log files from Cluster-2
- B. firmware.log from Cluster-1
- C. Health-Check output from Cluster-2
- D. VPLEX Performance GUI export from both clusters
Answer:
A
Question 15
Refer to the exhibit.
On which cluster is the GUI connected?
- A. Cluster-2
- B. Cluster-1
- C. Cluster IP alias
- D. VPLEXCLI must be used to determine which cluster is supporting the GUI
Answer:
B
